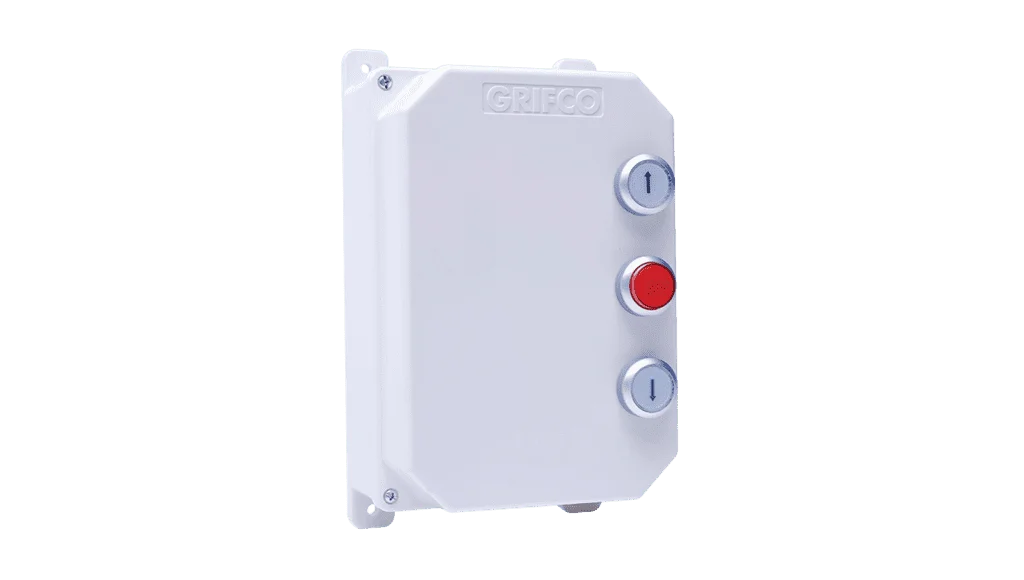

Reversing Starters

Basic Wall Controls for Operators with Mechanical Limits

Reversing Starters are ideal for basic door control and functionality. The simple push to open / hold to close functionality is ideal for our entire range of operators that have mechanical limits.

  • Broad range of controls to suit various operators
  • Models available with key switches for further control and operator isolation

Family Downloads

Reversing Starters | Three Phase 415V | 240V Coils | IP55

Part No. Overload Suits Operators
RG374-LB3E006 0.9A - 1.3A 0.37kW 0.5Hp 415V
RG374-LB3E007 2.3A - 3.2A 0.75kW 1Hp 415V to 1.1kW 1.5Hp 415V
RG374-LB3E008 2.9A - 4.0A 1.5kW 2.0Hp 415V
RG374-LB3E009 4.5A - 6.3A 2.2kW 3Hp 415V
RG374-LB3E010 5.5A - 7.5A 3kW 4Hp 415V
RG374-LB3E012 7.2A - 10.0A 4kW 5Hp 415V

Reversing Starters | Three Phase 415V | 415V Coils | IP55

Part No. Overload Suits Operators
RG378-LB3E006 0.9A - 1.3A 0.37kW 0.5Hp 415V
RG378-LB3E007 2.3A - 3.2A 0.75kW 1Hp 415V to 1.1kW 1.5Hp 415V
RG378-LB3E008 2.9A - 4.0A 1.5kW 2.0Hp 415V

Reversing Starters | Single Phase 240V | 3 Wire | IP55

Part No. Overload Suits Operators
RG375-LB1E008 2.9A - 4.0A 0.37kW 0.5Hp 240V 3-Wire
RG375-LB1E009 4.5A - 6.3A 0.75kW 1Hp 240V 3-Wire

Reversing Starters | Single Phase 240V | 4 Wire | IP55

Part No. Overload Suits Operators
RG376-LB1E009 4.5A - 6.3A 0.75kW 1Hp 240V 4-Wire
RG376-LB1E010 5.5A - 7.5A 1.1kW 1.5Hp 240V 4-Wire
RG376-LB1E012 7.2A - 10.0A 1.5kW 2.0Hp 240V 4-Wire

Reversing Starters with Special Features | Three Phase 415V 1Hp

Part No. Overload Suits Operators
RG374-LB3E007-HP 2.3A - 3.2A RG374 in IP56 Water Resistant Housing
RG374-LB3E007-C0024 2.3A - 3.2A 24V Coils
RG374-LB3E007-KS101 2.3A - 3.2A Basic Key Isolator
RG374-LB3E007-KS201 2.3A - 3.2A "Lock-it-Well" Key Isolator
RG374-LB3E007-RE024C 2.3A - 3.2A 24V DC Relay for Close Signal
RG374-LB3E007-RE240D 2.3A - 3.2A 240V AC Relay for Dock Leveler Interface

Replacement key for KS101 available.

Reversing Starters with Special Features | Three Phase 415V | Explosion Proof | Dust Ignition Proof

Part No. Overload Suits Operators
RG374-LB3E007-EX 2.3A - 3.2A mDrive Operator MH103MF (240V Coils)
RG374-LB3E008-EX 2.9A - 4.0A HD Operators 75007 / 75018
